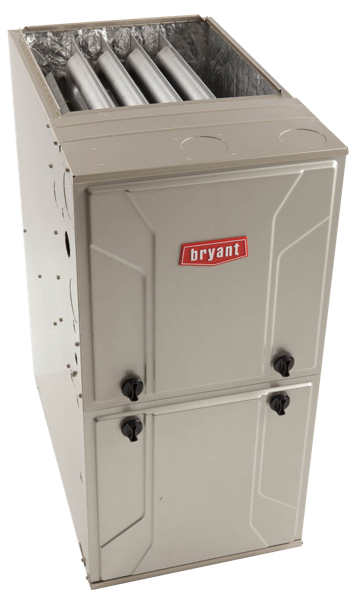

The 925SA Multipoise Variable-Speed Condensing Gas Furnace features the single-stage Preferred™ System. The single-stage gas system is at the heart of the comfort provided by this furnace. This Preferred Gas Furnace also features 4-way multipoise installation flexibility, and is available in five model sizes. The 925SA can be vented for direct vent/two-pipe, ventilated combustion air, or single-pipe applications. A Bryant Preferred Control and Preferred Air Conditioner or Heat Pump can be used to form a complete Preferred Series System. All units meet California Air Quality Management District emission requirements. All sizes are design certified in Canada.
MODEL | Configuration | Input MBtuH | Output MBtuH | AFUE | CFM | Dimensions HxWxD | Weight Lbs. |
---|---|---|---|---|---|---|---|
925SA30040E14 | 40.0 | 39.0 | 96.2 | 385 | 35x14.2x30 | 120 | |
925SA42060E17 | 60.0 | 58.0 | 96.2 | 530 | 35x17.5x30 | 141 | |
925SA48060E17 | 80.0 | 78.0 | 96.2 | 920 | 35x17.5x30 | 151 | |
925SA60080E21 | 80.0 | 78.0 | 96.2 | 795 | 35x21x30 | 156 | |
925SA60100E21 | 100.0 | 97.0 | 96.2 | 1105 | 35x21x30 | 166 | |
925SA66120E24 | 120.0 | 117.0 | 96.2 | 1385 | 35x24.5x30 | 190 |
