Panasonic has over 53 years of air conditioning experience and the RAC Multi E Series mini splits are a prime example. These zone mini split systems have inverter technology and are designed to give you individual control over the temperature of multiple rooms. Paired up with multiple indoor units that have multiple operating modes' multiple fan speeds' and multiple airflow directions' this is a system that fits the needs of nearly any home.
MODEL | Type | Unit Match or Number of Zones | Clg Cap MBtuH | SEER | Htg Cap MBtuH | HSPF | Refrigerant Connections | Dimensions HxWxD | Weight |
---|---|---|---|---|---|---|---|---|---|

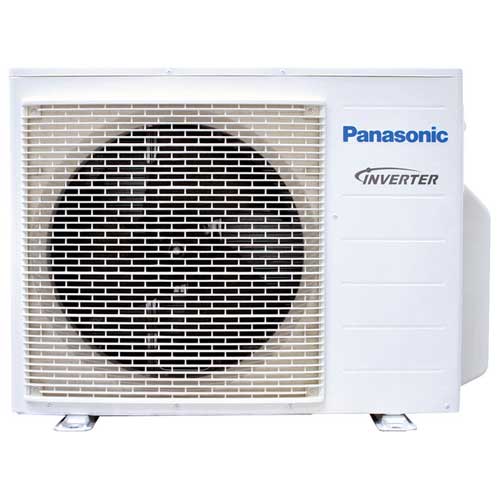

CU-2E18NBU | Outdoor | Up to 2 Zones | 16.7 | 18.0 | 20.2 | 8.8 | 31.3x34.4x12.6 | 152 | |
CU-5E36QBU | Outdoor | Up to 5 Zones | 36.0 | 18.5 | 37.8 | 10.0 | 39.4x37.1x13.4 | 193 | |
CU-3E19RBU | Outdoor | Up to 3 Zones | 19.0 | 22.0 | 26.0 | 10.5 | 31.3x34.4x12.6 | 159 | |
CU-4E24RBU | Outdoor | Up to 4 Zones | 24.0 | 22.0 | 37.8 | 9.5 | 39.4x37.1x13.4 | 183 | |

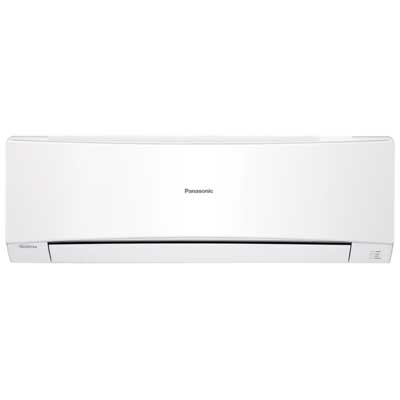

CS-ME5RKUA | Wall | Up to 5 Zones | 5.5 | 0.0 | 8.9 | 0.0 | 1/4-3/8 | 11.4x34.3x8.4 | 0 |
CS-ME7RKUA | Wall | Up to 5 Zones | 6.9 | 0.0 | 10.9 | 0.0 | 1/4-3/8 | 11.4x34.3x8.4 | 0 |
CS-E9RKUAW | Wall | Up to 5 Zones | 8.6 | 0.0 | 12.3 | 0.0 | 1/4-3/8 | 11.4x34.3x8.4 | 0 |
CS-E12RKUAW | Wall | Up to 5 Zones | 10.9 | 0.0 | 15.3 | 0.0 | 1/4-3/8 | 11.4x34.3x8.4 | 0 |
CS-E18RKUAW | Wall | Up to 5 Zones | 17.1 | 0.0 | 23.4 | 0.0 | 1/4-1/2 | 11.4x42.3x9.4 | 0 |
CS-E24RKUAW | Wall | Up to 5 Zones | 24.0 | 0.0 | 28.8 | 0.0 | 1/4-5/8 | 11.4x42.3x9.4 | 0 |

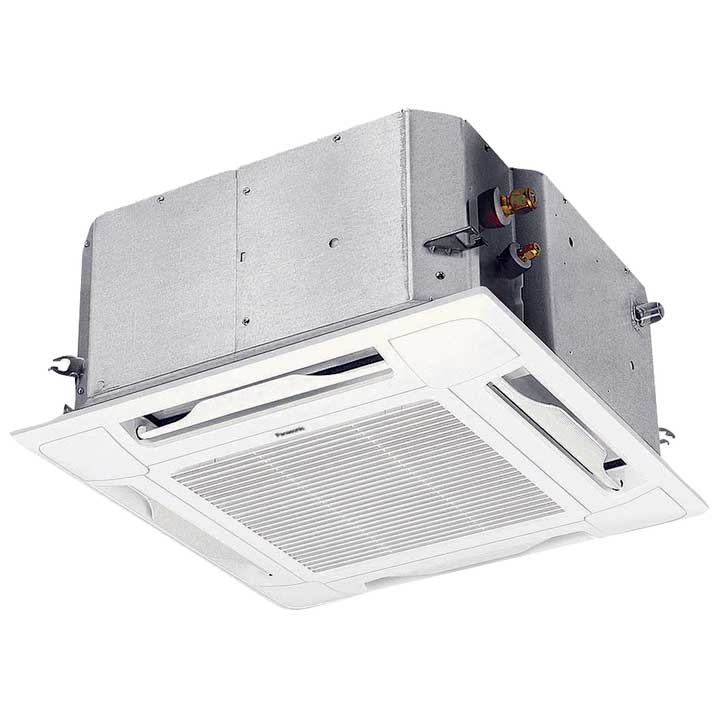

CS-E12RB4UW | Cassette | Up to 5 Zones | 10.9 | 0.0 | 15.3 | 0.0 | 1/4-1/2 | 10.25x22.75x22.75 | 40 |
CS-E18RB4UW | Cassette | Up to 5 Zones | 17.1 | 0.0 | 23.4 | 0.0 | 1/4-1/2 | 10.25x22.75x22.75 | 40 |

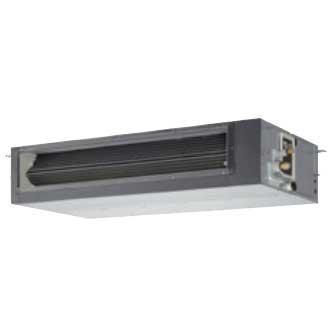

CS-E9SD3UAW | Ducted | Up to 5 Zones | 9.0 | 0.0 | 12.0 | 0.0 | 1/4-3/8 | 7.9x29.6x25.3 | 42 |
CS-E12SD3UAW | Ducted | Up to 5 Zones | 11.5 | 0.0 | 13.8 | 0.0 | 1/4-1/2 | 7.9x29.6x25.3 | 0 |
CS-E18SD3UAW | Ducted | Up to 5 Zones | 17.2 | 0.0 | 20.8 | 0.0 | 1/4-1/2 | 7.9x29.6x25.3 | 42 |
